Sealed/Closed Subwoofer Instructions

AJ Sealed Designer Software is for designing sealed or closed theoretical enclosures.

Input Parameters:

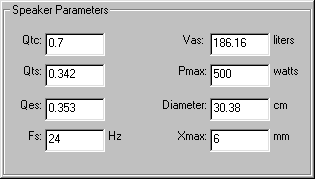

sealed subwoofer box parameters
The following Theile Small speaker parameters are required for input. These values should be included with your speaker manual or can be found on the manufacturer's web site.
  • Qts: Total Q of the speaker
  • Qes: Speaker electrical Q
  • Fs: Free air resonance of speaker in Hz
  • Vas: Volume of air equal to the speakers spring characteristics in liters
  • Pmax: Maximum power of the driver in watts
  • Diameter: The diameter of the driver in cm
  • Xmax: The amount of cone movement in one direction in mm
The following speaker parameters are user defined inputs. These values should be chosen by user preference.
  • Qtc: Total Q of the speaker and box
Notes:
  • MAKE SURE THE UNITS MATCH (e.g. Vas is in liters not cubic feet).
  • Qtc: choose a value between 0.1 and 1.5. A value between 0.5 and 1.2 should give good results.
  • Pmax, Diameter, and Xmax are not required for box calculation. They are used to determine the power response curve. Vb, Fb, and F3 will still be valid.

Calculated/Output Parameters:

sealed subwoofer box calculated results
The following speaker box and enclosure parameters are calculated:
  • Vb: Volume of box (one to be built) in liters
  • Fb: Box resonance in Hz
  • F3: Half power frequency in Hz
Notes:
  • F3 is the most meaningful parameter. The lower the F3 the lower the bass. A F3 below 50 Hz should be suitable for a sealed enclosure.
  • Vb is the size (volume) of the box that needs to be built. Generally, the lower the bass the bigger the box.
  • For Box Calculator instructions go here.
